Angular 8 Tutorial

Angular 8 Tutorial

Installation

First, you will need Node.js in order to install the Angular CLI. Head on over to http://nodejs.org , download and install it. After installation with the default settings, open up your command line / console and run the following command:

> npm -v

This should output a version number. If so, you're ready to install the Angular CLI (Command Line Interface), which is a command line tool that allows you to create and manage your Angular 8 projects.

To install the Angular CLI, issue the following command:

> npm install -g @angular/cli

Great, now let's create a new Angular 8 project:

> ng new myapp

This will prompt you with a couple questions. Answer them according to the answers below:

? Would you like to add Angular routing? Yes
? Which stylesheet format would you like to use? SCSS]

Angular routing allows you to create routes between the components in your app. We'll be using Sass (SCSS) as well, so we're adding that too.

Let's hop into the folder where our new project is stored:

> cd myapp

At this point, I usually issue the command: code . which opens up Visual Studio Code (the code editor I use) in the current folder.

Awesome, we're ready to rock now!

Running the Project

When you're developing your Angular 8 app, you will want to issue the following command in the terminal:

> ng serve -o

The -o flag is optional, but it opens up your default browser to the development location http://localhost:4200

Now, while you're developing your Angular app, every time you update a file, the browser will automatically reload (hot reloading) so that you can see the app and debug it in near real-time.

Note: When you want to deploy your Angular app, you will use a different command. We'll get to that later.

Folder Structure

It's worth dedicating a little bit of time to outline the important files and folders that you will commonly work in -- and also understand some of the under-the-hood stuff that makes Angular 8 work.

The folder and file structure looks like this in an Angular 8 project:

> e2e
> node_modules
> src
  > app
  > assets
  > environments
  ..index.html
  ..styles.scss

  • The e2e folder is for end to end testing. We won't be covering testing in this course, but I will do a separate tutorial on that.

  • node_modules is a folder you will never watch to touch, as it contains the project's dependencies.

  • /src contains much of your code.

  • /app is where you will spend the most of your time writing your Angular 8 code. It includes the routing, components, and more.

  • /index.html is the entry point to the app, and you generally don't touch this file.

  • /styles.scss is where your global CSS rulesets will reside.

Angular 8 Components

The fundamental building blocks of your Angular app are the components. Components consist of 3 elements:

  • The imports

  • The component decorator, which are various properties for your component. The component decorator includes locations to your component's template and CSS location.

  • The component logic, where your code resides.

Let's take a look at the component the Angular CLI generated for us to see these 3 areas in action.

Open up /src/app/app.component.ts:

import { Component } from '@angular/core';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.scss']
})
export class AppComponent {
  title = 'myapp';
}

As you can see, we have a single import at the top, which is necessary for all Angular components. We also have the @Component({}) decorator, and the component logic at the bottom with the single title property.

As we progress, we'll work with all 3 of these concepts to build out the app.

Creating a Navigation

Let's add a navbar with a logo and a navigation to the top of our app.

Open up /src/app/app.component.html and remove all of the current code. Replace it with the following:

<header>
  <div class="container">
    <a routerLink="/" class="logo">CoolApp</a>
    <nav>
      <ul>
        <li><a href="#" routerLink="/">Home</a></li>
        <li><a href="#" routerLink="/list">List</a></li>
      </ul>
    </nav>
  </div>
</header>

<div class="container">
  <router-outlet></router-outlet>
</div>

The two important areas that are specific to Angular 8 here are:

  1. routerLink - This is how you link together different pages of your app. You don't use href.

  2. router-outlet - This is where routed components are displayed within the template. You will see how this works shortly..

Next, let's visit the global /app/styles.scss file to provide it with the following rulesets:

@import url('https://fonts.googleapis.com/css?family=Nunito:400,700&display=swap');

$primary: rgb(111, 0, 255);

body {
    margin: 0;
    font-family: 'Nunito', 'sans-serif';
    font-size: 18px;
}

.container {
    width: 80%;
    margin: 0 auto;
}

header {
    background: $primary;
    padding: 1em 0;

    a {
        color: white;
        text-decoration: none;
    }
    a.logo {
        font-weight: bold;
    }

    nav {
        float: right;

        ul {
            list-style-type: none;
            margin: 0;
            display: flex;

            li a {
                padding: 1em;

                &:hover {
                    background: darken($primary, 10%);
                }
            }
        }
    }
}

h1 {
    margin-top: 2em;
}

Nothing too exciting happening here. After saving, your app should now have a styled navigation bar.

Routing

Let's use the Angular CLI to generate a couple components for the pages in our app.

Issue the following commands from the console:

> ng generate component home
> ng generate component list

This will generate several files for each component.

Next, we need to visit /src/app/app-routing.module.ts and add the following code:

import { NgModule } from '@angular/core';
import { Routes, RouterModule } from '@angular/router';

import { HomeComponent } from './home/home.component'; // Add this
import { ListComponent } from './list/list.component'; // Add this


const routes: Routes = [
  { path: '', component: HomeComponent },              // Add this
  { path: 'list', component: ListComponent }           // Add this
];

@NgModule({
  imports: [RouterModule.forRoot(routes)],
  exports: [RouterModule]
})
export class AppRoutingModule { }

We first import the components that were generated, and then we add them as an object in the Routes array. We left the path: property blank, which signifies the home component that will load by default when the app loads.

If you click on the List and Home links in the navigation, they will now display the component template associated with the clicked component!

Simple!

One way data binding

When you want to communicate data from the component logic to the template (or vice versa), this is called one-way data binding.

Open up the /src/app/home/home.component.html file and replace it with the following:

<h1>Welcome!</h1>

<div class="play-container">
    <p>You've clicked <span (click)="countClick()">this</span> {{ clickCounter }} times.</p>
</div>

We have a few things happening here:

  • (click) - This is a click event, which means if the element is clicked, it will call the function countClick() which doesn't yet exist.

  • {{ clickCounter }} this is interpolation. clickCounter is a property (not yet defined) that will display data that's retrieved from the component.

Visit the home.component.ts file and add the following code:

export class HomeComponent implements OnInit {

  clickCounter: number = 0;

  constructor() { }

  ngOnInit() {
  }

  countClick() {
    this.clickCounter += 1;
  }

}

We've defined the property (with TypeScript) and we've set it to 0.

Next, we created the function which will increment the clickCounter property by 1.

Before we give it a shot, let's give this some style. Visit the home.component.scss file and specify:

span {
    font-weight: bold;
    background: lightgray;
    padding: .3em .8em;
    cursor: pointer;
}

.play-container {
    padding: 3em;
    border: 1px solid lightgray;
    margin-bottom: 1em;

    input {
        padding: 1em;
        margin-bottom: 2em;
    }
}

Save all of the files you just modified, and give it a shot!

First, the template is retrieving the clickCounter property from the component. Then, if you click on the span element, it is communicating data from the template to the component!

Two way data binding

The best way to demonstrate the concept of data binding is to do it with a form element.

Visit home.component.html and add the following code:

<div class="play-container">
    <p>
        <input type="text" [(ngModel)]="name"><br>
        <strong>You said: </strong> {{ name }}
    </p>
</div>

In order for ngModel to work correctly, we need to import it into our /src/app/app.module.ts:

// other imports
import { FormsModule } from '@angular/forms';

@NgModule({
  ...
  imports: [
    BrowserModule,
    AppRoutingModule,
    FormsModule       // add this
  ],
  providers: [],
  bootstrap: [AppComponent]
})

Next, we have to define the name property in the home.component.ts file:

clickCounter: number = 0;
name: string = '';  // add this

If you save it and begin to type within the textfield, you will see that it displays in the line beneath it in real time. This is two-way data binding because it's both setting and retreiving the property to and from the component/template!

ng-template

What about working with if and else within your templates? We can use ng-template for that.

Add the following code at the end of home.component.html:

<div class="play-container">
    <ng-template [ngIf]="clickCounter > 4" [ngIfElse]="none">
        <p>The click counter <strong>IS GREATER</strong> than 4.</p>
    </ng-template>

    <ng-template #none>
        <p>The click counter is <strong>not greater</strong> than 4.</p>
    </ng-template>
</div>

First, we use property binding [ngIf] and bind it to an expression clickCounter > 4.

If that expression isn't true, it will call upon a template called none with ngIfElse.

If that expression is true, it will show the HTML within the initial ng-template block.

If not, it shows the template defined by #none beneath it!

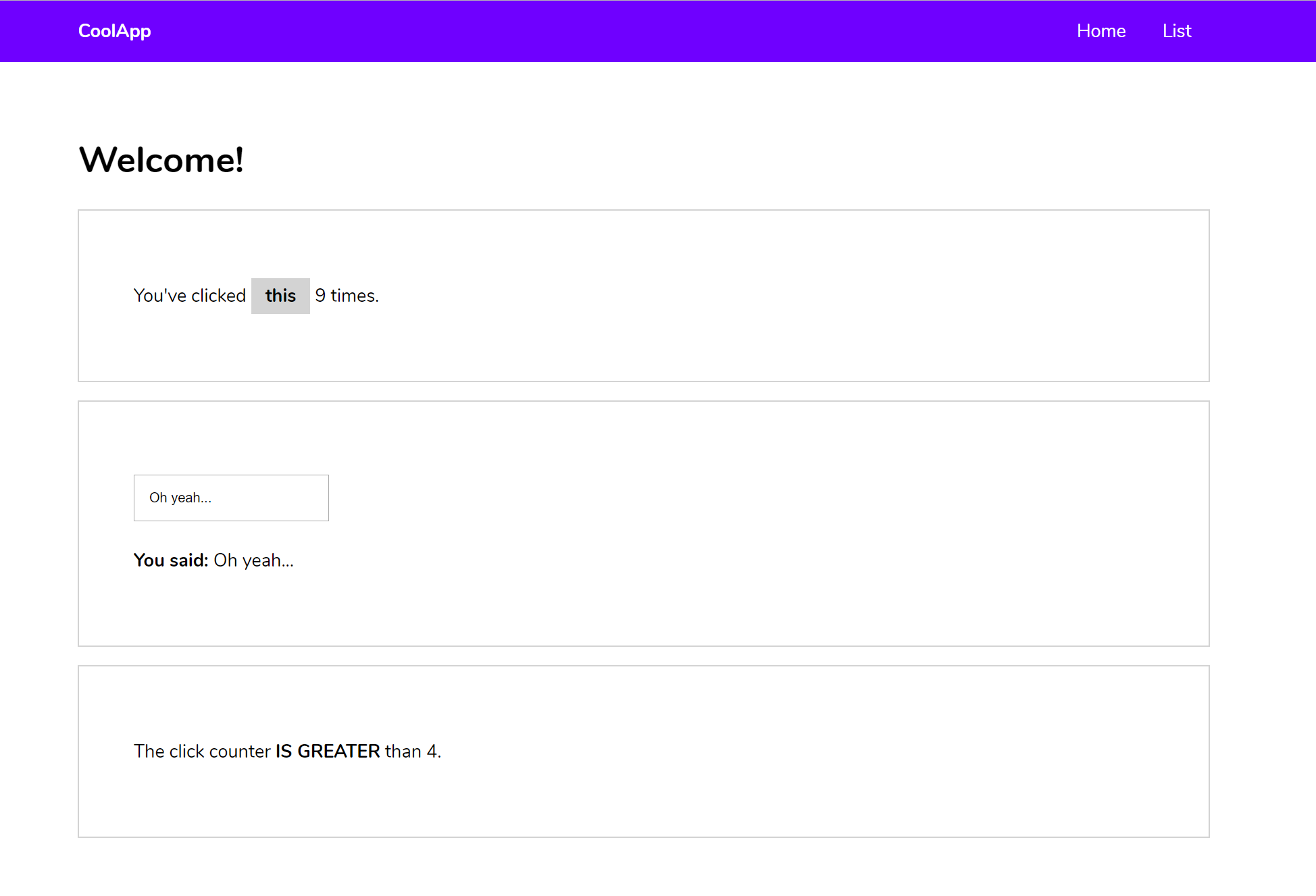

Give it a shot by clicking the span element until it reaches 5 or more and you will see it work in action.

Awesome!

Style Binding

Sometimes, you want to modify the appearance of your UI based on events that occur in your app. This is where class and style binding come into play.

Modify the last play-container class in our HTML like so:

<div class="play-container" [style.background-color]="clickCounter > 4 ? 'yellow' : 'lightgray'">

With inline style binding, you wrap it in brackets (property binding) and specify style. and then the name of the CSS property. You bind them to an expression (we're using clickCounter > 4, or this could be a boolean value too) and then a ternary operator ? where the first value is used if it's true, and the second value after the colon is used for false.

If you save, it will initially show the play container block as light gray. If you click our span button a few times, it will turn yellow.

What if you wanted to specify multiple CSS properties?

Modify the code like this:

<div class="play-container" [ngStyle]="{
    'background-color': clickCounter > 4 ? 'yellow' : 'lightgray',
    'border':           clickCounter > 4 ? '4px solid black' : 'none'}
">

Try it out now, and you will notice both CSS properties change.

Note: You can specify [ngStyle]="someObject" instead, if you wish to specify that logic in the component instead of the template.

Class Binding

If you wish to add or remove entire classes that are defined in your CSS, you can do this with class binding.

Modify the current .play-container we've been working with, to the following:

<div class="play-container" [class.active]="clickCounter > 4">

Visit the home.component.scss and add this ruleset:

.active {
    background-color: yellow;
    border: 4px solid black;
}

Give it a shot! It works!

We can also set multiple classes with ngClass.

Modify the template as shown below:

<div class="play-container" [ngClass]="setClasses()">

Let's visit the component file and add the following:

  setClasses() {
    let myClasses = {
      active: this.clickCounter > 4,
      notactive: this.clickCounter <= 4
    };
    return myClasses;
  }

We added the notactive class here, so we should define it in the component's CSS file as well:

.notactive {
    background-color: lightgray;
}

Give it a shot! Awesome stuff!

Services

Services are special components that are reusable throughout your app. We're going to create a service for the purpose of communicating with an API to fetch some data and display it on our lists page.

Let's generate the service with the Angular CLI:

ng g s http

Notice "g s", these are just shorthand terms for "generate service". The name we're giving this service is "http".

Let's visit the new service file located at /src/app/http.service.ts:

import { Injectable } from '@angular/core';

@Injectable({
  providedIn: 'root'
})
export class HttpService {

  constructor() { }
}

It looks similar to a component, except the import is an Injectable instead of a Component, and the decator is based on this @Injectable.

Let's create a custom method that other components can access:

export class HttpService {

  constructor() { }

  myMethod() {
    return console.log('Hey, what is up!');
  }
}

Next, in /src/list/list.component.ts:

export class ListComponent implements OnInit {

  constructor(private _http: HttpService) { }

  ngOnInit() {
    this._http.myMethod();
  }

}

ngOnInit() is a lifecycle hook that is fired when the component loads. So, we're saying, run our .method() from the service when the component loads.

If you click to the list link in the navigation and view your console in the web developer tools, you will see "Hey, what is up!" output.

Angular HTTP Client

We need to integrate the HTTP client within our http service, which will allow us to communicate with a public API.

Visit our http.service.ts file and add the following:

import { Injectable } from '@angular/core';
import { HttpClient } from '@angular/common/http';

@Injectable({
  providedIn: 'root'
})
export class HttpService {

  constructor(private http: HttpClient) { }

  getBeer() {
    return this.http.get('https://api.openbrewerydb.org/breweries')
  }
}

First, we import the HttpClient, then we create an instance of it through dependency injection, and then we create a method that returns the response from the API. Simple!

We have to import the HttpClientModule in our /src/app/app.module.ts file:

import { HttpClientModule } from '@angular/common/http';  // Add this

@NgModule({
  imports: [
    BrowserModule,
    AppRoutingModule,
    FormsModule,
    HttpClientModule   // Add here
  ],

Next, open up the list.component.ts file and add the following:

export class ListComponent implements OnInit {

  brews: Object;

  constructor(private _http: HttpService) { }

  ngOnInit() {
    this._http.getBeer().subscribe(data => {
      this.brews = data
      console.log(this.brews);
    }
  );
  }

}

The service returns an observable, which means we can subscribe to it within the component. In the return, we can pass the data to our brews object.

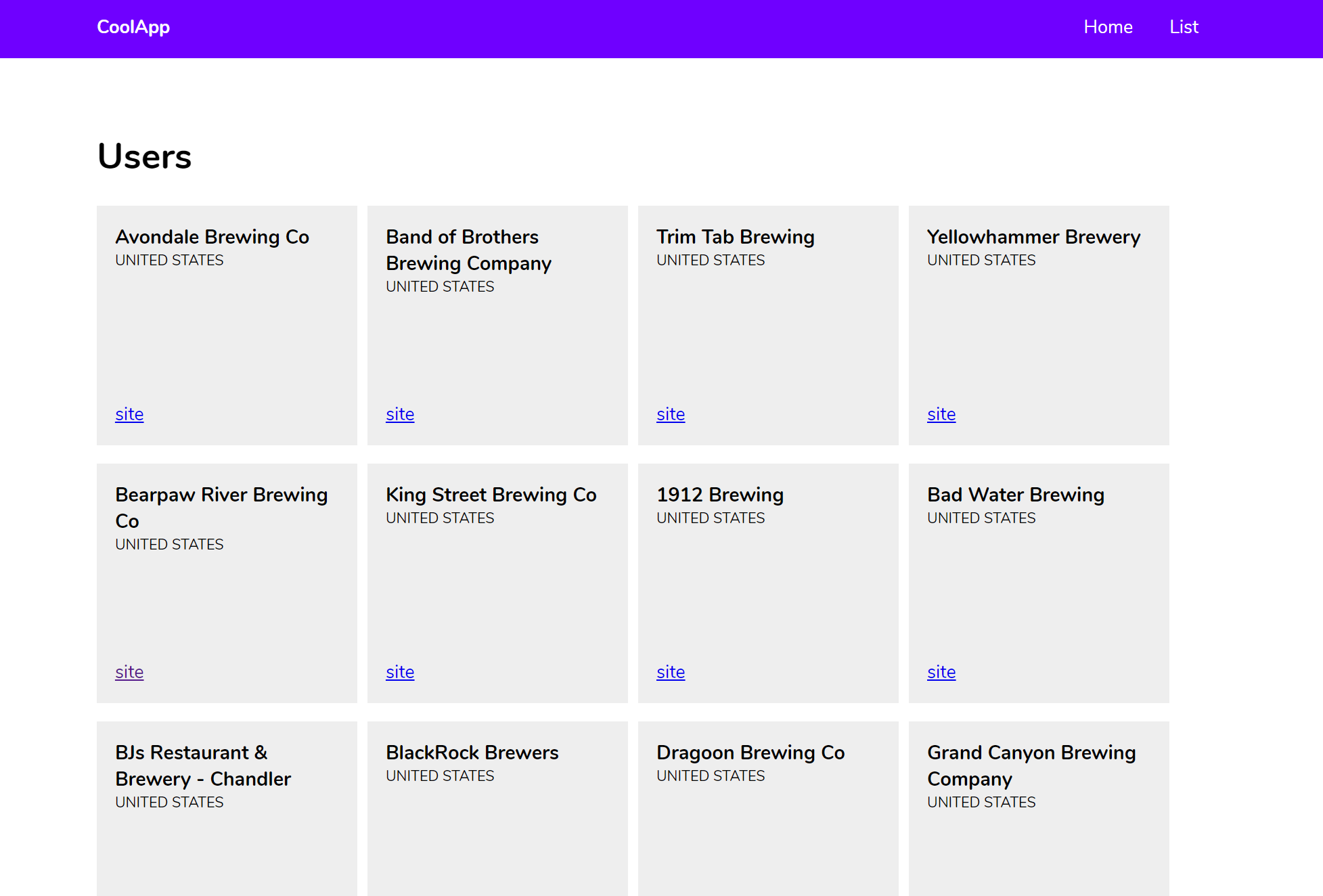

Next, visit the list template file and add the following:

<h1>Breweries</h1>

<ul *ngIf="brews">
  <li *ngFor="let brew of brews">
    <p class="name">{{ brew.name }}</p>
    <p class="country">{{ brew.country }}</p>
    <a class="site" href="{{ brew.website_url }}">site</a>
  </li>
</ul>

First, we add an *ngIf to only show the UL element if brews exists.

Then, we iterate through the array of objects with *ngFor.

After that, it's a simple matter of iterating through the results with interpolation!

Let's style this with CSS real quickly in this component's .scss file:

ul {
    list-style-type: none;
    margin: 0;
    padding: 0;
    display: flex;
    flex-wrap: wrap;

    li {
        background: rgb(238, 238, 238);
        padding: 1em;
        margin-right: 10px;
        width: 20%;
        height: 200px;
        margin-bottom: 1em;
        display: flex;
        flex-direction: column;

        p {
            margin: 0;
        }

        p.name {
            font-weight: bold;
            font-size: 1.2rem;
        }
        p.country {
            text-transform: uppercase;
            font-size: .9rem;
            flex-grow: 1;
        }
    }
}

And here's the result!

Deployment

Let's say that we're happy with our app and we want to deploy it.

We first have to create a production build with the Angular CLI. Visit the console and issue the following command:

> ng build --prod

This will create a /dist folder. We can even run it locally with something like lite-server. To install lite-server:

> npm i -g lite-server

Hop into the folder: myapp\dist\myapp\ and run:

> lite-server

This will launch the production build in the browser!

At this point, you have a number of options for deploying it (Github Pages, Netlify, your own hosting, etc..).

Closing

We've just scratched the surface here, but you also learned ton. I suggest recreating another app using everything you've learned here before proceeding with more of the intermediate to advance topics. That way, you can really commit the fundamental stuff to memory through repition.

Enjoy!

Install dependencies from package.json

npm install --save-dev @angular-devkit/build-angular

npm audit fix - fix vulnerability

PreviousHTMLNextVedios for angular

Last updated

Was this helpful?
